The Draftbit Docs

Welcome to the Draftbit documentation. You'll find comprehensive documentation and information to help you start working with Draftbit as quickly as possible, as well as support if you get stuck. Let's jump right in!

Get Started

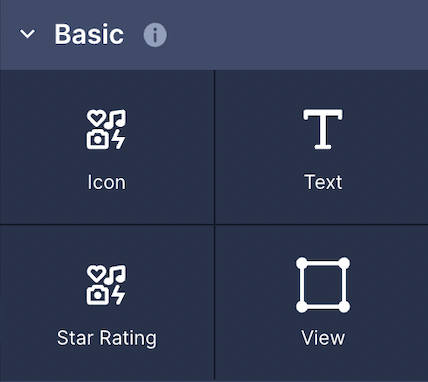

Basic

The most simple & essential components to build a screen

View

The most fundamental component for building a UI, View is a container that supports layout with flexbox, style, some touch handling, and accessibility controls. View maps directly to the native view equivalent on whatever platform React Native is running on, whether that is a UIView, <div>, android.view, etc.

A view is designed to be nested inside other views and can have 0 to many children of any type.

Configuration

Parameter

Description

accessible

When enabled, the element will be defined as accessible (defaults to true)

accessibilityLabel

Text in this input will override what the user's screen reader would read by default

accessibilityHint

Additional explanation of what happens when a user interactions with an accessibility element

accessibilityRole

Defines the role of the element for the user's screen reader

accessibilityElementsHidden

Enable to hide accessibility elements within the View (defaults to false)

accessibilityIgnoresInvertColors

Enable to prevent the color of the View from being inverted if color inversion is turned on

accessibilityLiveRegion

Determine how accessibility services should inform the user of any changes made to the View

importantForAccessibility

Determines the View's importance for accessibility and also how accessibility events work

hitSlop

Defines how far away a touch event will be registered from the View

pointerEvents

Determines if a View can handle touch events

removeClippedSubviews

Used for scrolling content that contains offscreen subviews (subviews must have overflow: hidden)

collapsable

Enable to automatically remove the View from the native hierarchy if it's unneeded in order to optimize performance

needsOffscreenAlphaCompositing

Determine if the View should be rendered offscreen and composited with an alpha in order to preserve original colors and blending behavior.

renderToHardwareTextureAndroid

Determine if the View and its children should be rendered into one hardware texture on the GPU.

shouldRasterizeIOS

Enable to render the View as a bitmap before compositing

clickable

If true, the View will be clickable for accessibility hints.

FlatList Render Item

Item: returns renderItem (default)
Header: returns a ListHeaderComponent
Footer: returns a ListFooterComponent
Separator: returns a ItemSeparatorComponent
Empty: returns a ListEmptyComponent

Resources

React Native Docs
Expo Docs

Icon

A symbol representing a object or an item.

Configuration

Parameter

Description

Name

The icon selected from the icon picker.

Size

The width and height of the icon.

Color

The color of the icon.

Resources

Expo Docs
Expo Icon Directory

Text

A basic component to display text.

Configuration

Parameter

Description

Text

The text that will be displayed in the component.

accessibilityLabel

Text in this input will override what the user's screen reader would read by default

accessibilityRole

Defines the role of the element for the user's screen reader

accessible

When enabled, the element will be defined as accessible (defaults to true)

adjustsFontSizeToFit

Enable to automatically scale fonts to fit certain constraints

allowFontScaling

When enabled, fonts will scale for accessibility (defaults to true)

dataDetectorType

Defines the type of data

disabled

Creates a disabled view of the text for testing purposes

ellipsizeMode

Determine how text will be truncated, only if numbersOfLines prop is set

maxFontSizeMultiplier

Define the font's maximum scale only if allowFontScaling is enabled

minimumFontScale

Define the font's maximum scale only if adjustsFontSizeToFit is enabled

numberOfLines

Set the maximum number of lines to be displayed when ellipsizeMode is set

selectable

When enabled, the user can select text for copying and pasting

selectionColor

Set the highlight color of the text

suppressHighlighting

When enabled, there will be no visual indication when the user presses down on text

textBreakStrategy

Set the text break stategy

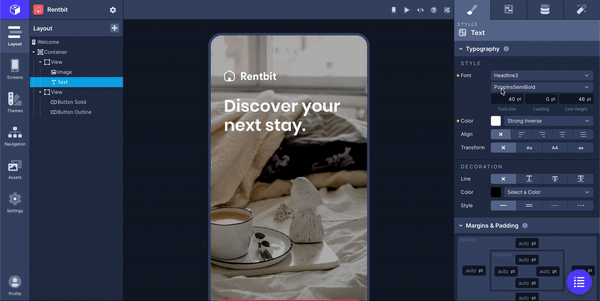

Custom Fonts

In addition to directly selecting the Typography set in the Theme you're currently using, you have the option to select a custom font directly from the Builder in the Styles tab.

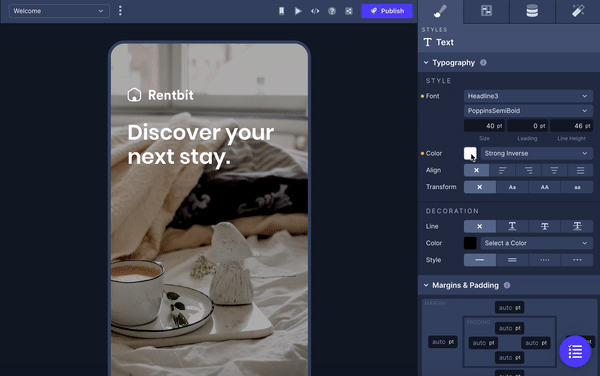

Custom Colors

You can add custom Text/Text Decoration and Border Decoration colors by clicking the color panel next to the color dropdown in the Properties Panel. In this window, you can use the color picker, enter a HEX value, or an RGBA value to select a custom color for the property you've selected.

Resources

React Native Docs
Expo
